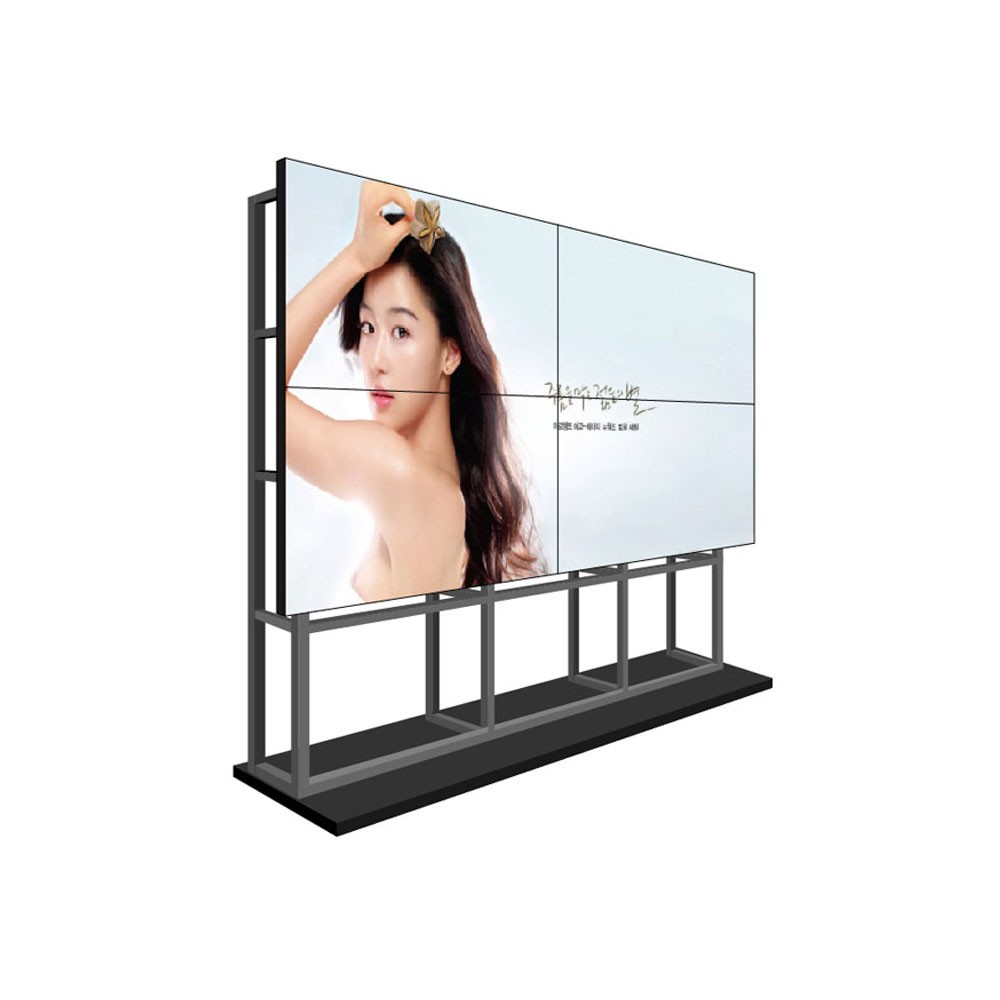

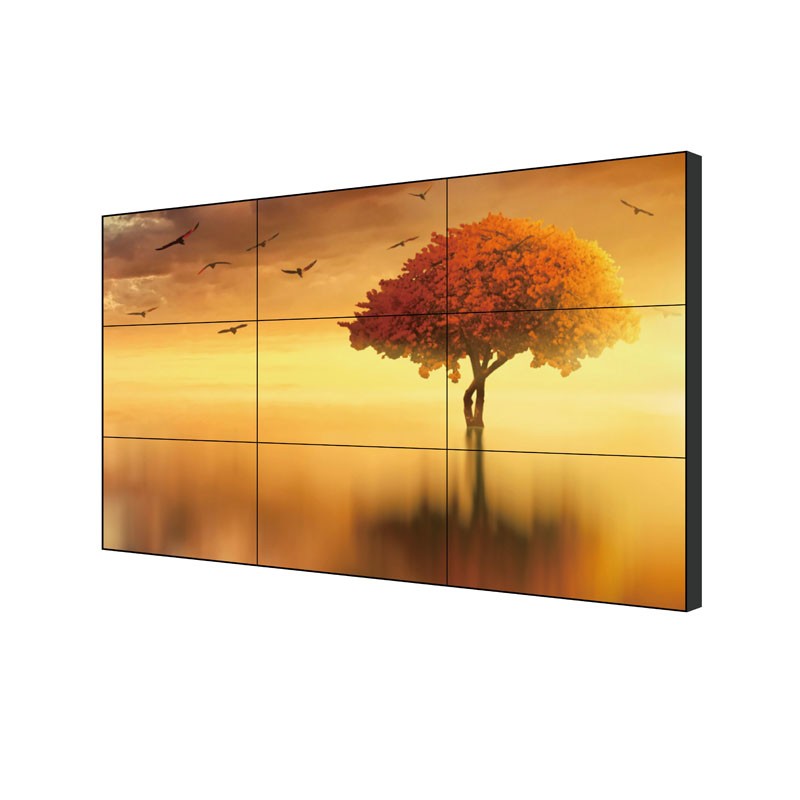

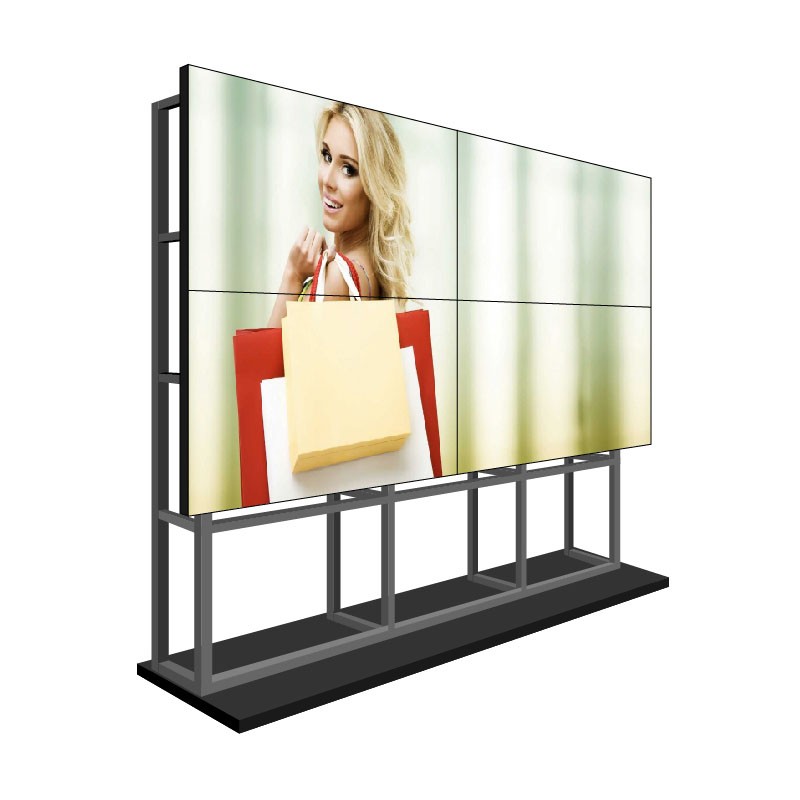

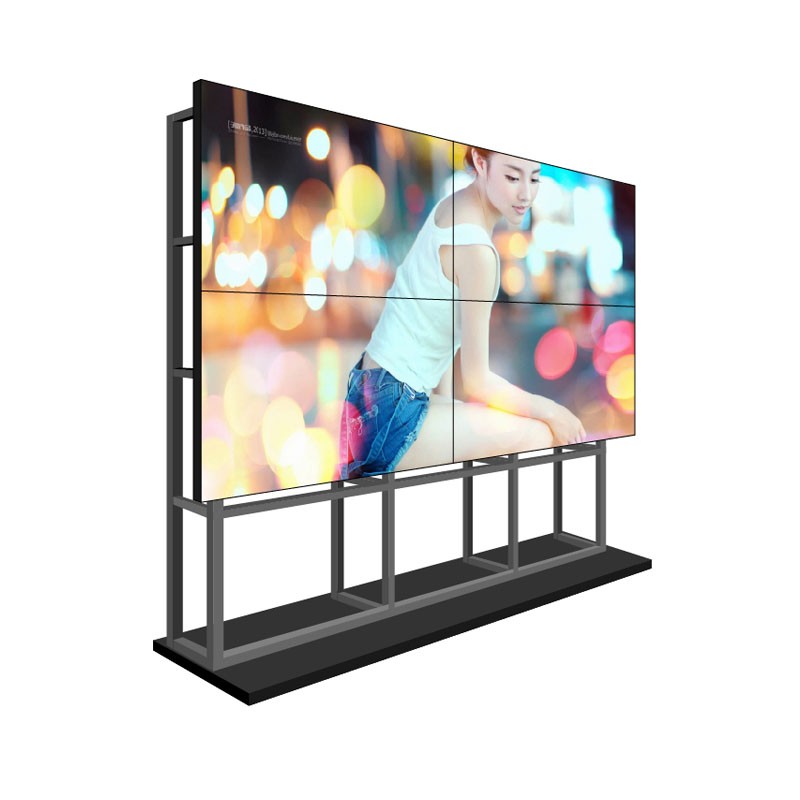

Video wall

Features

1. The video wall adopt full metal case support industrial scale quality and long service time.

2. It support to play video, audio, picture, PPT, website, etc, you can tell more, to show your products/profile in 360degree.
3. The video wall can be applied to smart conference room, smart training room, molls, restaurant, hotel, hospital,auditorium,etc.

Physical infrastructure

All Metal Narrow Edge

Bilateral 3.5mm Design

Back

Interface

Model No.	46”, 49”, 55” DID LCD Panel
Bezel	3.5mm
LCD Panel	Max Resolution Support	1920×1080(H×V)
	Pixel Pitch	0.53025（H）×0.53025 (V)
	Brightness (nits)	500 (cd/ m )
	Contrast	4000:1
	Response Time	8ms
	Color	16.7M
	Visual Angle (H/V)	178°(H) / 178°(V)
Image	Contrast	16 : 9
	Picture quality compensation	LTI、CTI
	Motion compensation	AUTO MOVE
	Filter	3D comb filtering，digital noise reduction
	Video format	PAL、NTSC
Video Wall Controller (Built-in each Screen)	Computer centralized control interface	RS232
Structure	Border dimension	Top: 2.25mm; bottom :1.25mm; Left: :2.25mm; Right: 1.25mm
	Shell material	Metal shell, anti-static,anti-magnetic,anti-strong electric field interference
	Installation way	Wall mount，floor standing mount，hanging mount

Technical Parameter

Configuration options

Option 1：Full HD 2K
	Digital signal input	HDMI×1； 1920x1080@60Hz backward compatible
	Computer signal input	VGA(DB-15) ×1；1920x1080@60Hz backward compatible
	Digital signal input	DVI(DVI-I)×1；1080P(1920×1080) backward compatible
	Composite Video Input/(AV)	CVBS(BNC)x1
	RS232	3
	USB	1
Option 2：DP Looping 4K
Signal source	Display Port(DP)	3840x2160@30Hz、3840x2160@20Hz、3840x2160@25Hz
	HDMI	480p、576p、720p、1080i、1080p、2160p
	DVI	480p、576p、720p、1080i、1080p
	Input port	Display Port	1 x DP
		VGA	15 D-SUB×1
		HDMI	HDMI×1
		DVI	DVI×1
		RS232	1
	Output	RS232	1
		DP Output	DP×1

Size

Diagonal size	46”	49”	55”
Display size(H*V,mm)	1018.48 x573.07	1074.08 x 604.3	1209.9 x 680.7
Product size (HVD,mm)	1021.98 x576.57* 93.7	1077.58 x 607.8 * 93.7	1213.4 x 684.2* 99.99
Net weight, kgs	18	20	25
