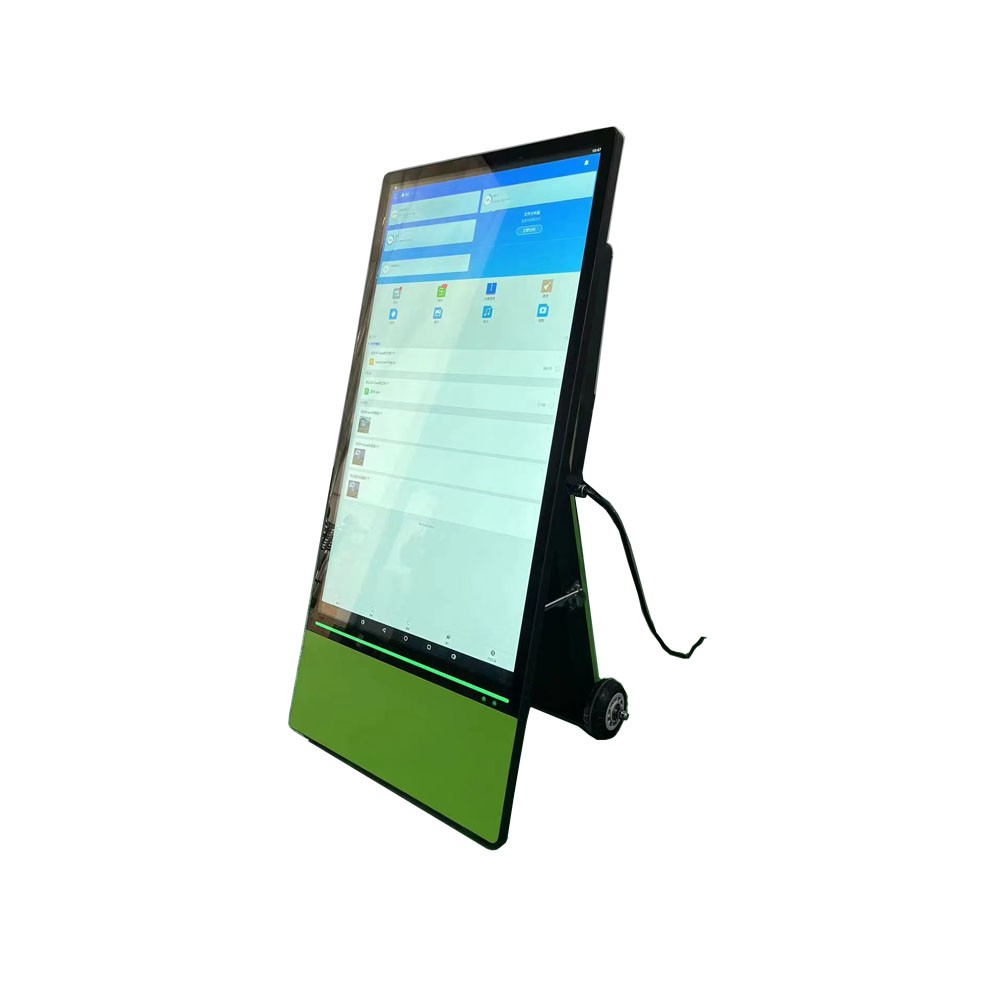

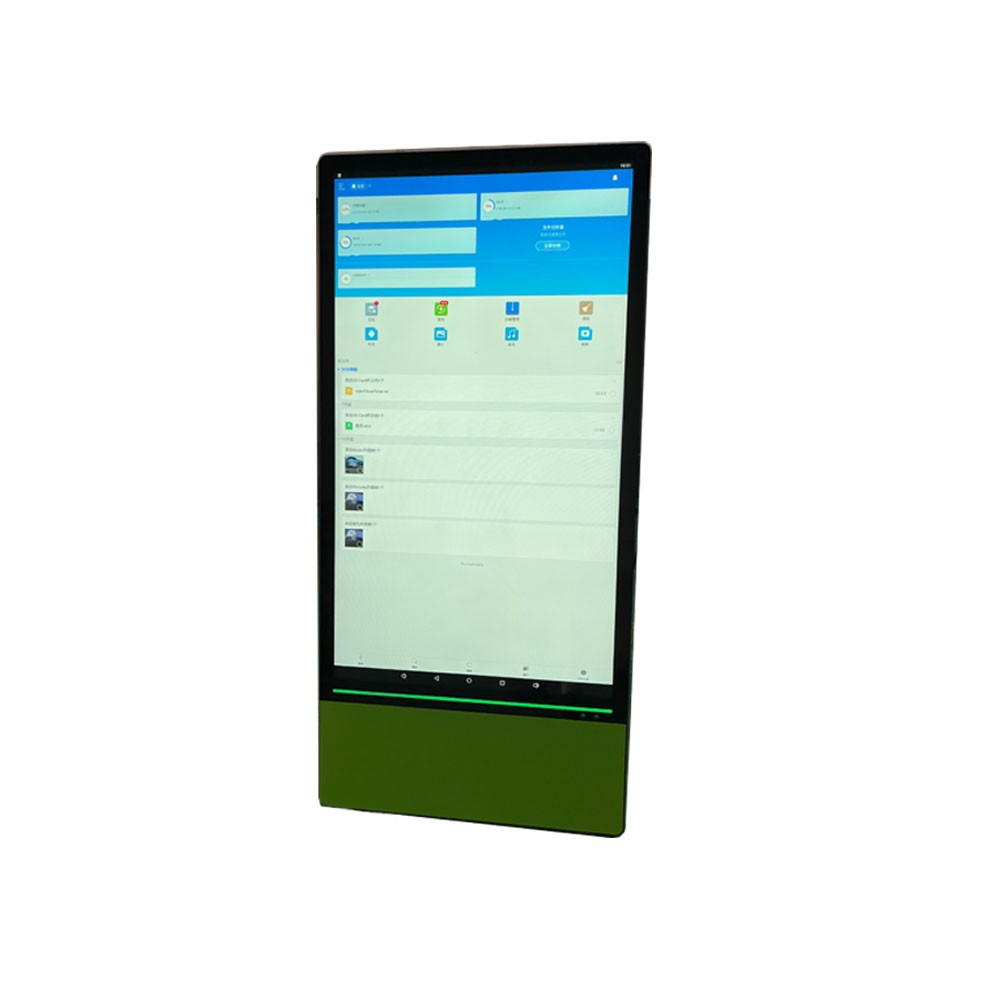

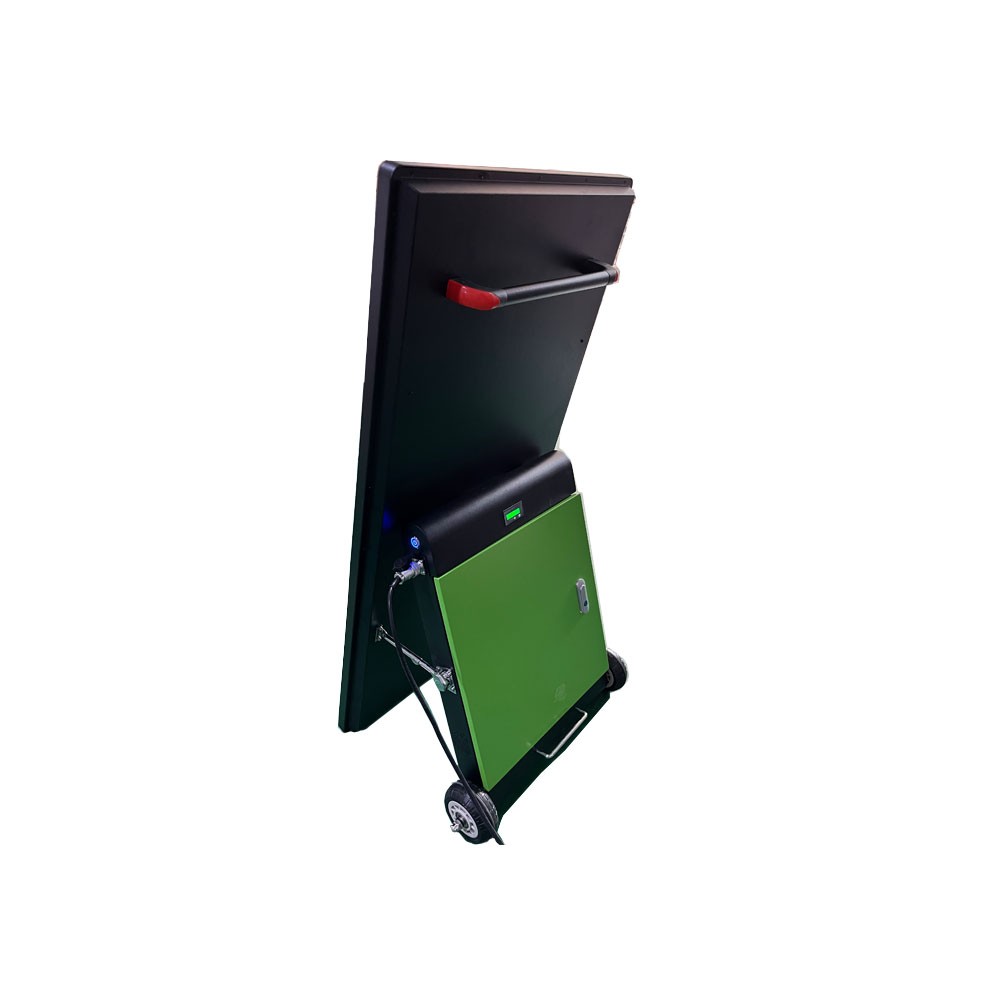

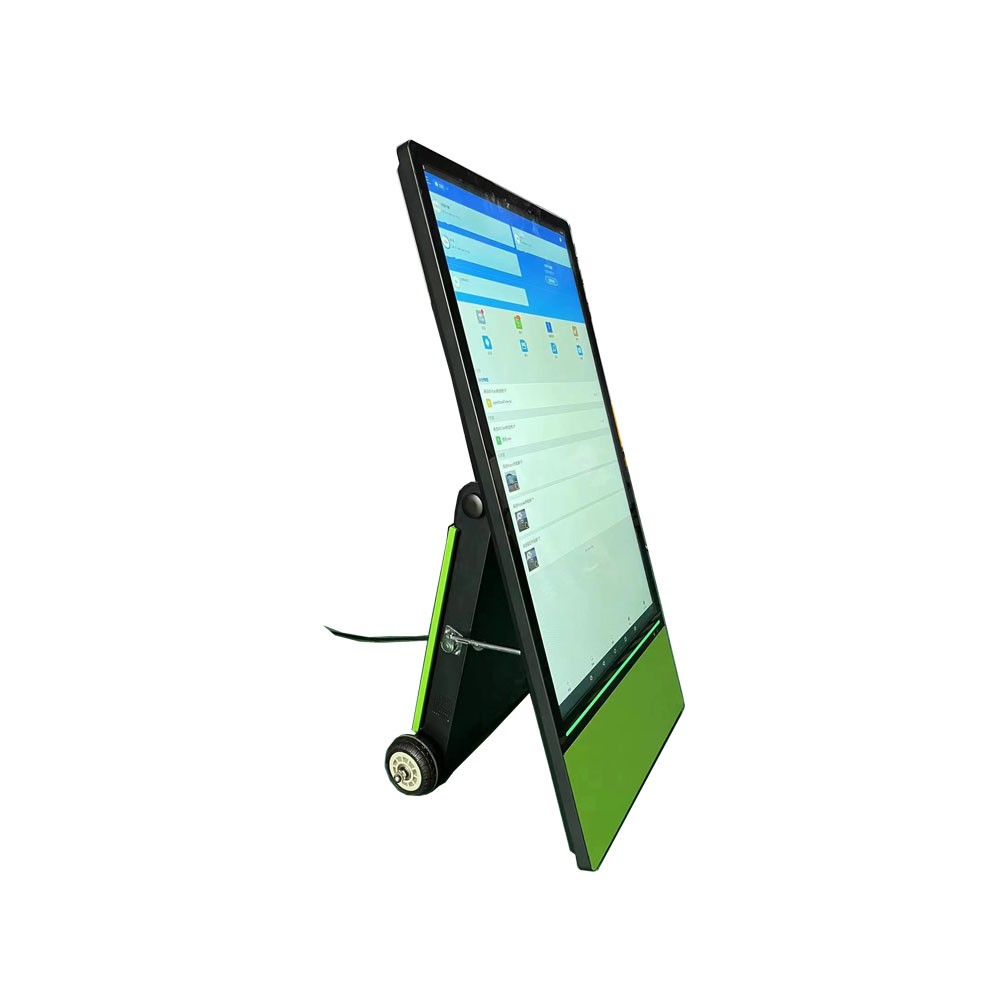

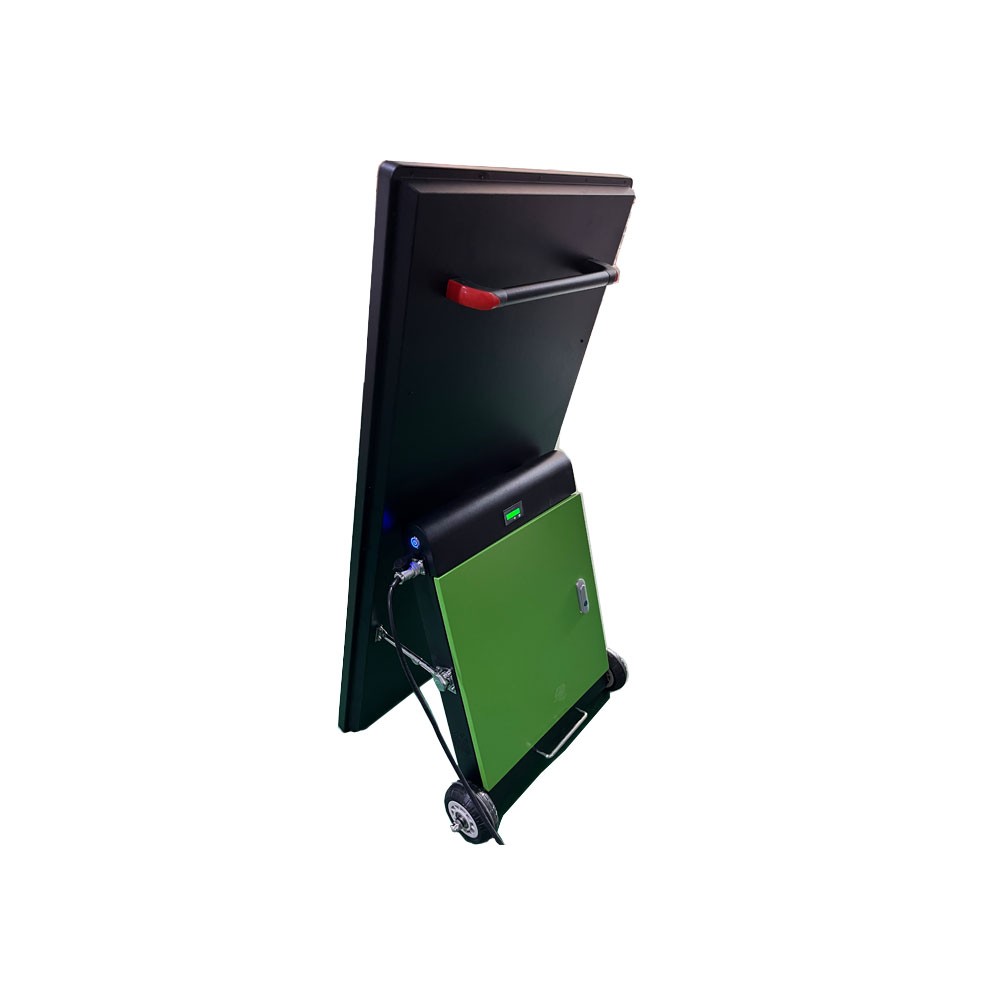

It is a convenient outdoor movable digital signage.
1.This outdoor display adopt LCD panel with high brightness back lit, up to 1800nits, the picture/video is visible under sunshine;
2.Unique temperature adjustment tech of LCD panel achieve working between -50℃-110℃, it can boot fast in low temperature and display clear video;
3.The resolution up to UHD 2160 x3840;
4.It is water and dust resistant IP55;
5.This device allow to build plug&play board, windows OS, Android OS, and touch with it.
6.Anti-theft function, once it been moved, it will alarm.
It is a very convenient and movable outdoor digital signage.
1. This display case adopt full steel plated with zinc, anti-magnetic, anti-static, waterproof IP 55, also support outdoor anti rain and dust, Anti theft, explosion-proof etc.
2. It support rigorous protection: power leakage, over load, over voltage protection, anti-thunder protection, over heat protection etc.
3. Speaker: Use dual-channel, stereo surround amplifier system, out put 8Ω 2*10W;
4. This kiosk support working in +110°~ -50°, for its stable and reliable wind cooling structure and aluminum heat-emitting basic board.
5. Tempered glass is 6mm AR tempered laminated glass;
6. Each part is with modulized designation, achieves sustainability and maintainability;
7. Its light sensor system is premium: the ambient brightness auto-adjust and control anti-glare, to serve clear display under strong sunshine.
Parameter
Panel | Panel type | 43”LED Panel |
Display size | 943×531mm(W*H) | |
Ratio | 16:9 | |
Back lit type | Patented LED backlit module+Constant current source drive component | |
Resolution | 1080*1920, or 2160*3840 | |
Color | 16.7M | |
Brightness | 1800cd/m2 support displaying clear video under strong sunshine. | |
Contrast ratio | 3500:1 | |
View angle | 178°(H) / 178°(V) | |
Response time | 5ms | |
Color mode | PAL/NTSC/SECAM | |
Life time | 50000h | |
Main board | CPU | Cortex-A7, 1.2G |
Flash | DDR3 1G | |
Memory | Extendable TF card Up to 32GB | |
Decode resolution | Max 1080P | |
Operation system | Android 7.1.1 | |
Supported network | 3G/4G, Ethernet, WiFi, wireless external device | |
Video format | Includes AVI (H.264, DIVX, DIVX, XVID), rm, rmvb, MKV(H.264, DIVX, DIVX, XVID), WMV, MOV, MP4(.H.264, MPEG, DIVX, XVID), DAT(VCD format),VOB(DVD format), PMP, MPEG, .MPG, FLV(H.263, H.264), ASF, TS, TP, 3GP, MPG, etc , more than 30 formats. | |
Photo format | BMP, JPEG, PNG, GIF | |
USB2.0 port | 2*USB HOST, 2*USB extendable ports | |
System upgrade | Support USB upgrading, SD card upgrading, remote upgrading. | |
Battery | Technology | Blade batter, support long working time and stable. |
Charging time | 7h | |
continuous work | 12h | |
Batter capacity | 5000 mAh | |
Input voltage | 24V | |
Working condition | Working temperature | -50℃～110℃ |
Store temperature | -45℃～80℃ | |
Working humidity | 10%～90% | |
Store humidity | 10%～90% | |
Input voltage | AC100V～240V | |
Power | ≤100W | |
Standby | ≤3W | |
Color | Sliver, gray, white, blace, red | |
Case material | SECC+ Outdoor special paint | |
Certificate | ISO9001,3C,FCC,UL |
