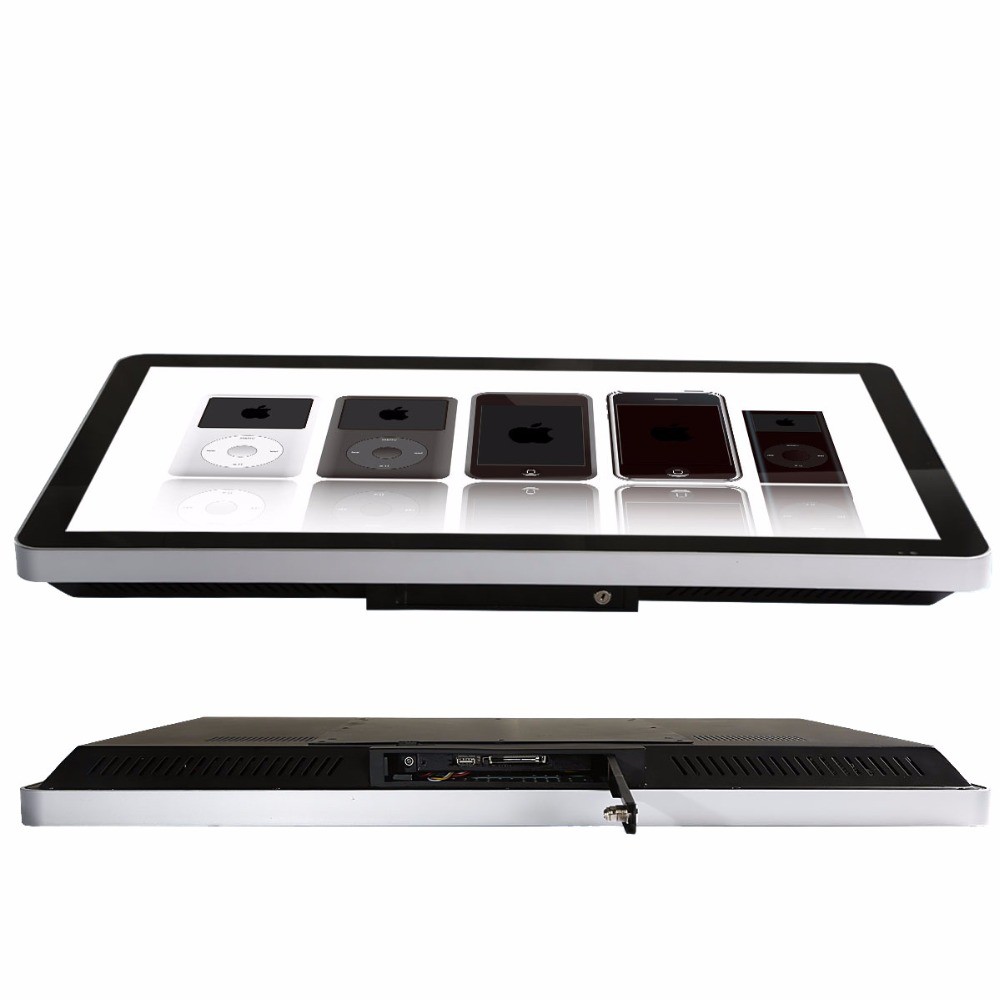

21.5inch touchable digital signage
Features
1. The 21.5inch digital signage with concise and elegant design, adopt full metal case and tempered glass protection to support industrial scale quality and long service time.
2. It support to play video, audio, picture, PPT, website, etc, you can tell more, to show your products/profile in 360degree.
2. The screen support Full HD/Ultra HD resolution, an good tool to show the brand’s products in high tier.
3. It is extremely easy and simple to update the advertising contents, can be manage by network or USB flash, and save printing poster.
4. It is extendable with touch control and interactive, support people to get more information what they care about.
5. It support wide usage, can be deploy to shopping malls, banks, restaurants, school, company, airport and any other public places where you need to advertise or inform.
6. The digital signage installing way: wall mounting, floor standing, table top.
Technical Parameter
Screen parameter | Size | 21.5” | Audio system | Speaker | 2*5Ω | |
Back Type | LED back light | Sound mode | standard | |||
Display ratio | 16:9 | O/I | PC output | RJ45, USB*2 | ||
Physical resolution | 1920*1080p | L/R | 1 RCA*2 | |||
Color depth | 16.7M | Power consumption | Input voltage | AC 100~240V 50/60Hz | ||
View angle | 178/178 | Working power Standby power | ≦30W ≦1W | |||
Brightness | 250 cd/㎡ | Case | Material | SPCC | ||
Contrast: | 1200:1 | Color | Black (default) | |||
Response time | 5ms | Eternal condition | Working temperature / humidity | 0℃～50℃ / 0.85 | ||
Service time | 30000 hours | Storage Temperature / humidity | －20℃~60℃ / 0.85 |
Touch Technology Options
Touch technology options | Capacitive touch |
Touch points | 10 points |
Material | G+G |
Response Time | <3ms |
Touch Times | 50 million times |
Transmittance | 0.95 |
Built in system options
1. Monitor version
CPU | Internal storage | Out storage | Interface | Connect to System |
E9-B11, etc | No storage | USB/HDD/SSD | HDMI in/VGA/DVI/USB | Android/Windows/linux/Strawberry |
2. USB Flash plug&play version
CPU | Internal storage | Out storage | Interface | Connect to System |
Mstar V56 | No storage (8G/16G optional) | Support SD card and USB flash | HDMI in/USB/SD | Android/Windows/linux/Strawberry
|
3. Android
CPU | Architecture | Processor | Max resolution | System version | Standard storage |
RK3128 | Cotex-A7 | Quad- core | 1080P | Android 6.0 | 512MB+8GB |
RK3368 | Cotex-A53 | Octa- core | 2K/4K | Android 6.0 | 1GB+8GB |
RK3288 | Cotex-A17 | Quad- core | 4K | Android 9.0 | 2GB+8GB |
RK3399 | Cotex-A72 | Hexa- core | 4K | Android 9.0 | 4GB+16GB |
4. Windows Os
CPU | Windows OS version | Graphics | RAM | Storage |
Intel i3 |
Windows7/10 | 3.7HZ/3.9HZ | 4G/8G | SSD 120G and upper |
Intel i5 | 3.2HZ/3.4HZ | 4G/8G | SSD 120G and upper | |
Intel i7 | 3.4HZ/3.6HZ | 4G/8G | SSD 120G and upper |
